PI Vision Custom Symbol : TIME SERIES DATA TABLE

Description

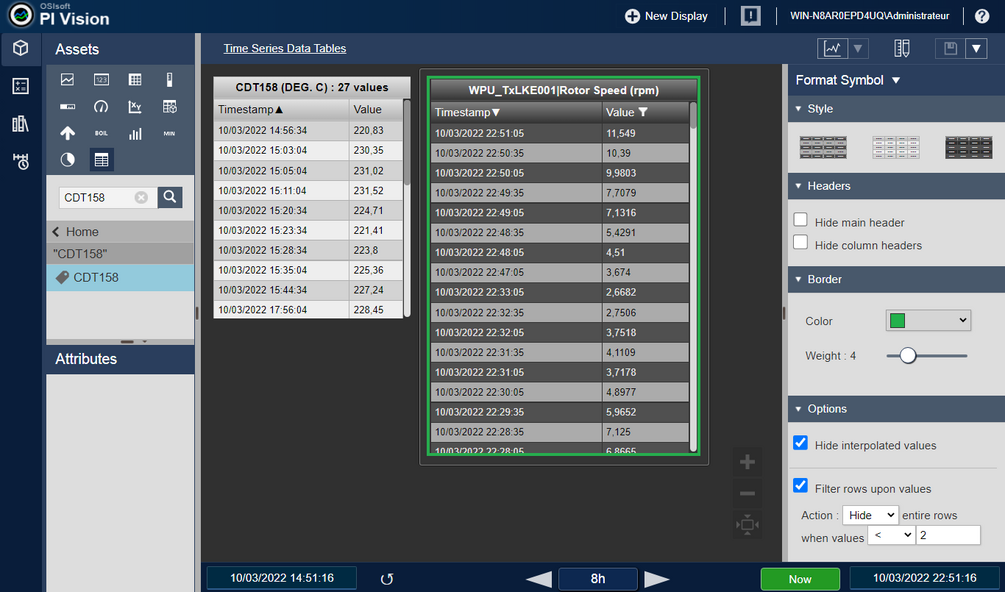

The PI Vision custom symbol Time Series Data Table is a table that lists all values for a specific datasource, similarly to the Time Series Data feature in PI System Explorer.

The table is scrollable, and is composed of 2 columns : Timestamp and Value

This symbol works with PI tags and PI AF attributes.

Configuration options

• Style
  • Default theme
  • Light Theme
  • Dark theme
• Customize table headers
  • Hide / Show the number of values
  • Hide / Show the column headers Timestamp and Value
• Border :
  • Color
  • Width (from 0 pixel to 20 pixels)
• Options :
  • Hide / Show interpolated values
  • Filter rows upon the values :
    • Hide / Show rows following criteria
    • Operators : equal to, different from, less than, less than or equal to, greater than, greater than or equal to, like (works with texts and numerical values)

Features

Timestamps can be sorted ascending or descending directly from the symbol (no need to edit the options in the configuration pane).

Technical considerations

Compatibility

This custom symbol is compatible with PI Vision 2017 R2 or later.

Tested with :

• PI Vision 2017 R2 SP1 (build 3.3.1.0)
• PI Vision 2019 Patch 1 (build 3.4.1.0)
• PI Vision 2020 Patch 1 (build 3.5.1.0)
• PI Vision 2021 Patch 1 (build 3.6.1.0)
• PI Vision 2022 (build 3.7.0.0)
• PI Vision 2022 Patch 1 (build 3.7.1.0)
• PI Vision 2023 (build 3.8.0.0)
• PI Vision 2023 SP1 Patch 1 (build 3.9.1.0)

Asset switching

This custom symbol is fully compatible with the asset switching feature.

Data retrieval

Fully based on Data Services (like core PI Vision symbols).

Do NOT require PI Web API.

Dependencies

No dependency required :

• No external library
• No polyfill
